ALIGN Sliding - ONLINE

Features:

  • For Aligned (Flush) Sliding doors
  • 100% Full opening
  • 2 or 3 Doors
  • Door thickness : Min 25 to Max 45mm
  • SOFT  OPENING & CLOSING
  • Max Door  Height : 2800mm

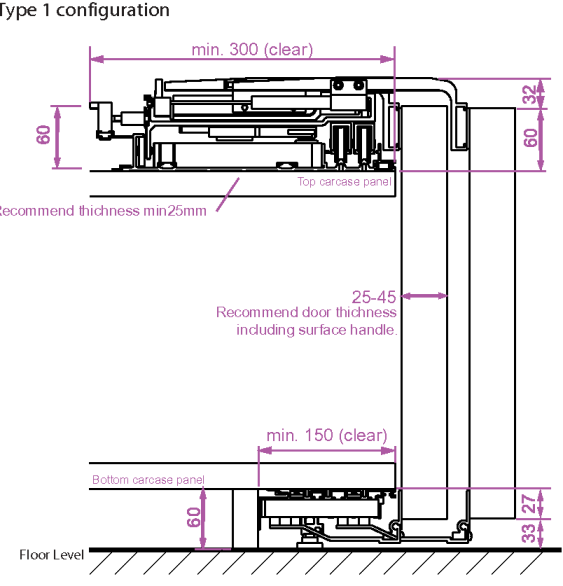

  • Minimum Clearance at Top      : 150mm
  • Minimum Clearance at Bottom: 80mm
  • Depth/Width of Top Track       : 300mm
  • Depth/Width of Bottom Track : 150mm
  • Carcass structure : Minimum 25mm panel thickness
  • Customized Length to requirement



    MODEL                           Weight of Door                       Door Width

   Set of 2 Doors                   Up to 55 KG                         750 - 1250mm

   Set of 2 Doors                   Up to 85 KG                       1300 - 1800mm

   Set of 3  Doors                  Up to 55 KG                         950 - 1250mm



COUNTRY OF ORIGIN:

  • Made in Italy
